Custom High-Precision OEM PCB Mold Solution
Premium OEM Series

Custom PCB Punching Die
& PCB Stamping Die Manufacturer

SK PCB Tools manufactures custom PCB punching dies and PCB stamping molds for PCB profile punching, hole punching, slot punching and panel separation. Our tooling supports FR1, FR2, CEM1, CEM2, FR4 and aluminum PCB boards for high-volume production.

  • Clean Edge Punching Designed to reduce burrs, cracks and deformation during PCB profile punching and hole punching.
  • Drawing-Based Customization Custom die design based on Gerber files, DXF drawings, PCB samples and press machine specifications.
  • High-Durability Construction SKD11 / DC53 tool steel with heat treatment for long tool life and stable mass production.
Get Free quote

Why Choose Our PCB Punching Dies

Comprehensive production solutions backing your PCB manufacturing lines.

Factory-Direct Tooling

Direct manufacturing control from material selection, machining and assembly to trial punching inspection.

Multi-Substrate Experience

Tooling solutions for FR1, FR2, CEM1, CEM2, FR4 and aluminum PCB boards.

Drawing-to-Die Service

Support from drawing review and tooling design to sample validation and shipment.

Export-Oriented Support

Supporting PCB, PCBA, LED lighting and electronics manufacturers in India, Vietnam, Thailand, Malaysia and other markets.

Specification & Parameters

Material SKD11 / DC53 High-Grade Tool Steel
Tolerance ±0.005mm
Die Life 2,500,000+ Strokes
Lead Time 10-15 Days
Substrates FR1, FR2, FR4, CEM1, CEM2, Aluminum
Customization OEM / ODM based on CAD drawings

Customization & Support

Drawing Review & Die Design

We review Gerber files, DXF drawings, PCB samples, material, thickness and production requirements before tooling design.

Punching Clearance Optimization

Die clearance is customized according to PCB material and thickness to reduce burrs, cracks and deformation.

Trial Punching Validation

Sample punching photos or videos can be provided before shipment to confirm edge quality and hole position.

Spare Parts & Maintenance Support

Spare punches, inserts and long-term maintenance support are available for production tooling.

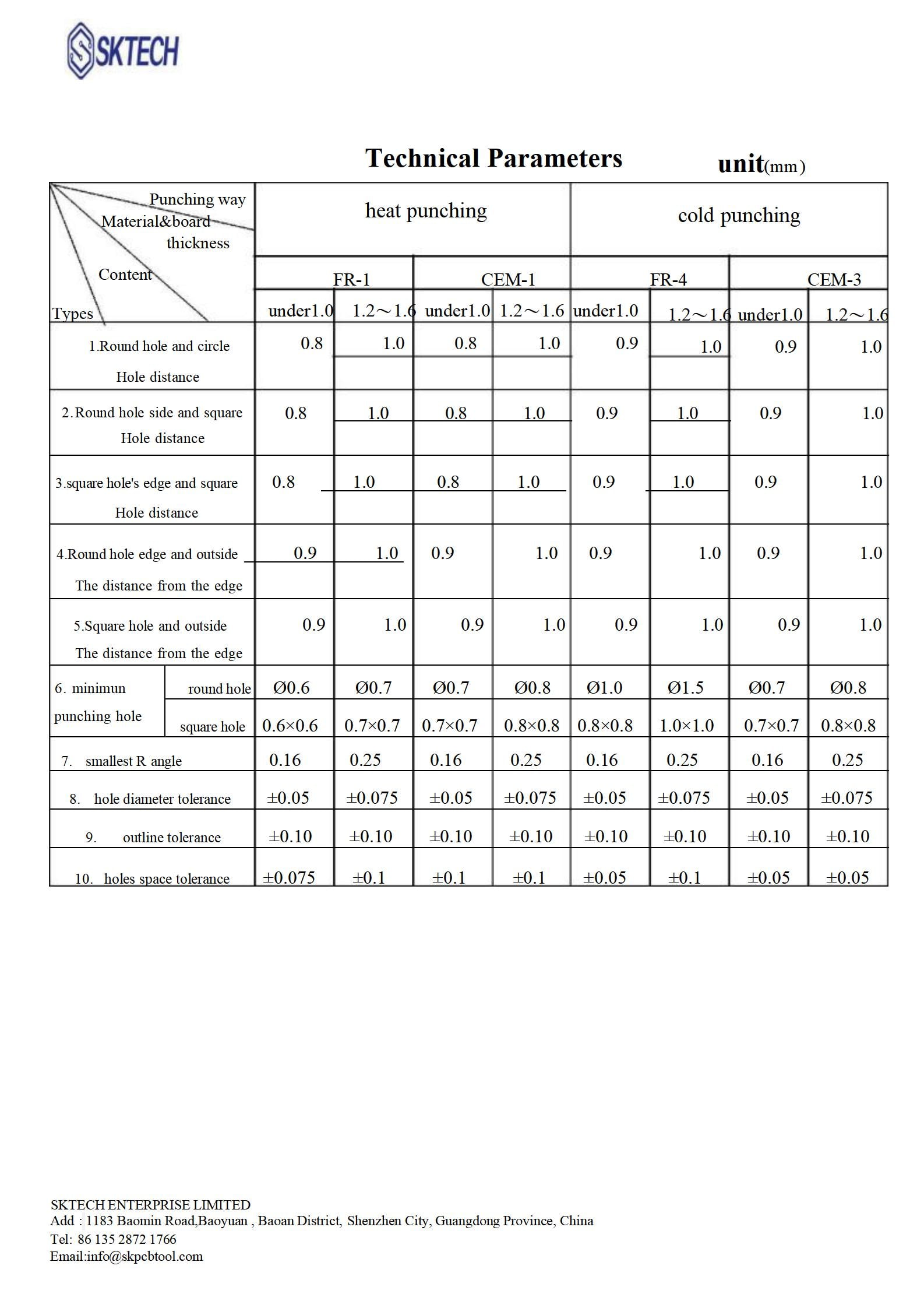

PCB Punching Die Technical Specifications

Reference values for PCB punching die design. Final specifications depend on PCB material, thickness, profile, hole size and production requirements.

Category Item Hot Punching Cold Punching
FR-1 <1.0 FR-1 1.2-1.6 CEM-1 <1.0 CEM-1 1.2-1.6 FR-4 <1.0 FR-4 1.2-1.6 CEM-3 <1.0 CEM-3 1.2-1.6
Spacing Round to Round 0.8 1.0 0.8 1.0 0.9 1.0 0.9 1.0
Round to Square 0.8 1.0 0.8 1.0 0.9 1.0 0.9 1.0
Square to Square 0.8 1.0 0.8 1.0 0.9 1.0 0.9 1.0
Edge Hole to Edge 0.9 1.0 0.9 1.0 0.9 1.0 0.9 1.0
Square to Edge 0.9 1.0 0.9 1.0 0.9 1.0 0.9 1.0
Processing Limits Min Round Hole (mm) 0.6 0.7 0.7 0.8 1.0 1.5 0.7 0.8
Min Square Hole (mm) 0.6×0.6 0.7×0.7 0.7×0.7 0.8×0.8 0.8×0.8 1.0×1.0 0.7×0.7 0.8×0.8
Min R Angle (mm) 0.16 0.25 0.16 0.25 0.16 0.25 0.16 0.25
Tolerances Hole Dia. Tolerance ±0.05 ±0.075 ±0.05 ±0.075 ±0.05 ±0.075 ±0.05 ±0.075
Outline Tolerance ±0.10 ±0.10 ±0.10 ±0.10 ±0.10 ±0.10 ±0.10 ±0.10
Pitch Tolerance ±0.075 ±0.1 ±0.1 ±0.1 ±0.05 ±0.1 ±0.05 ±0.05

PCB Punching Die Production & Quality Gallery

Real photos of our custom PCB punching dies pics.

Mass Production Setup
Mass Production Setup

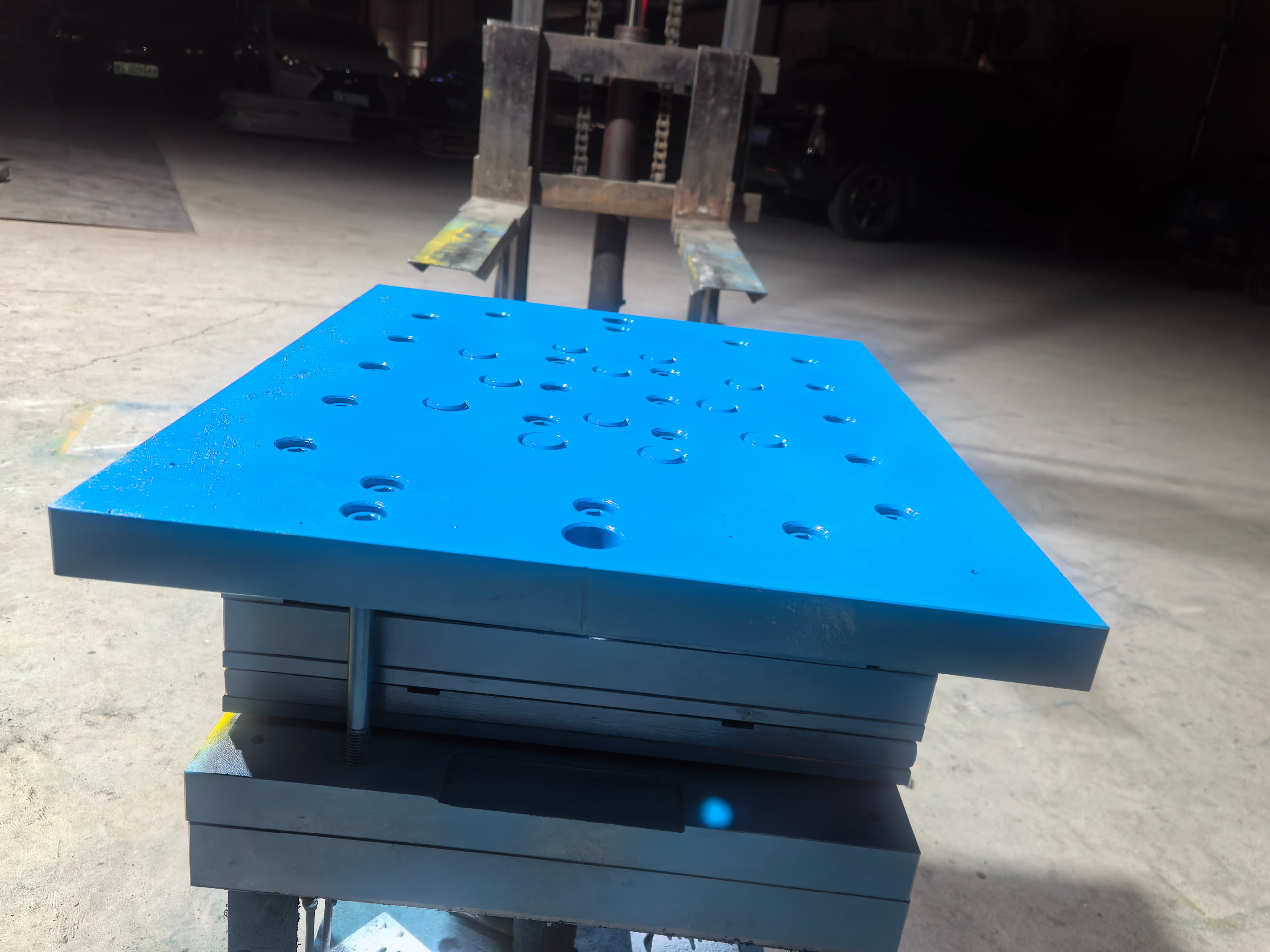

Die Bottom Structure
Bottom Structure
Punched PCB Sample
Punched PCB Sample

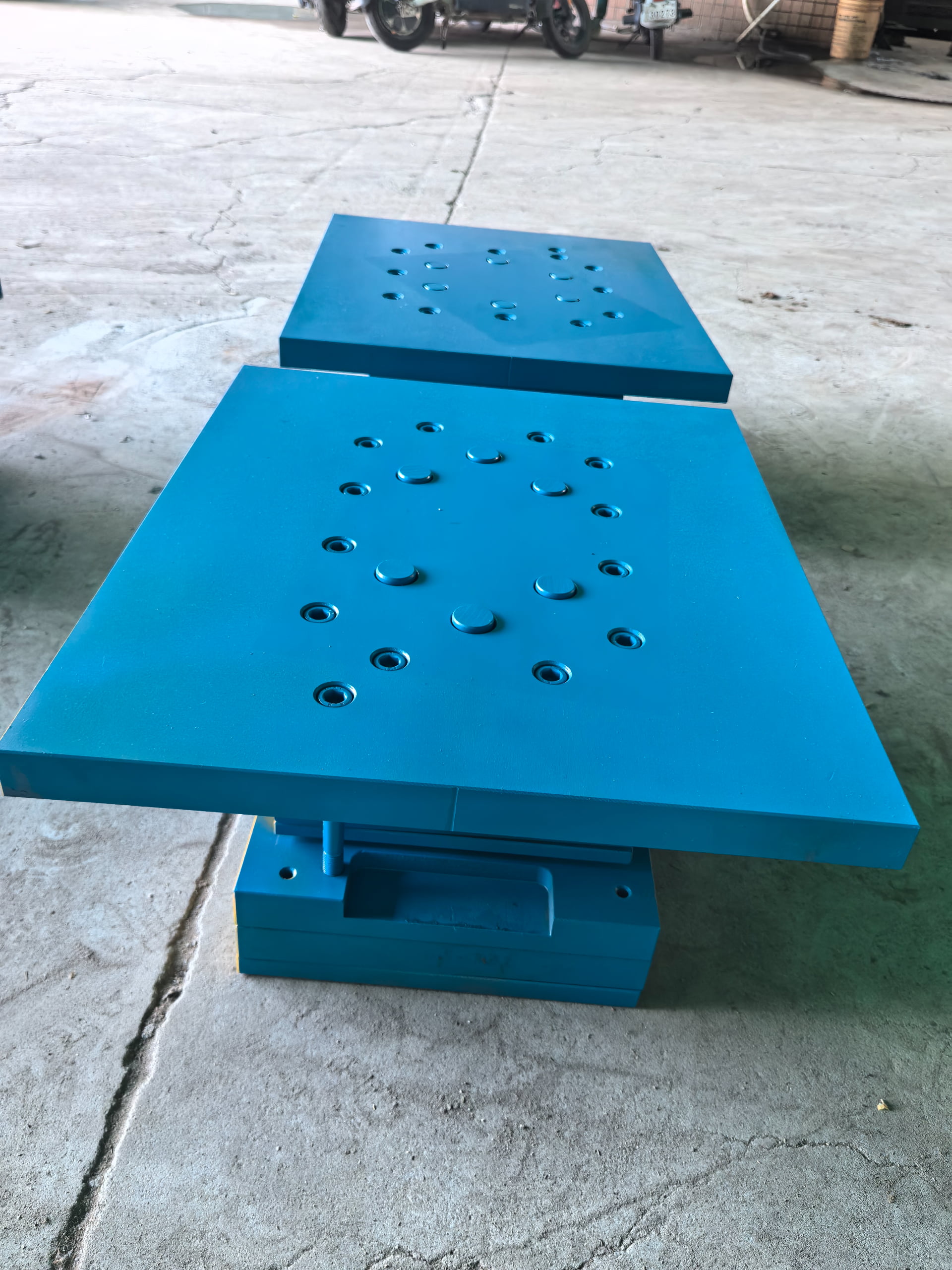

Die Side View
Die Side View

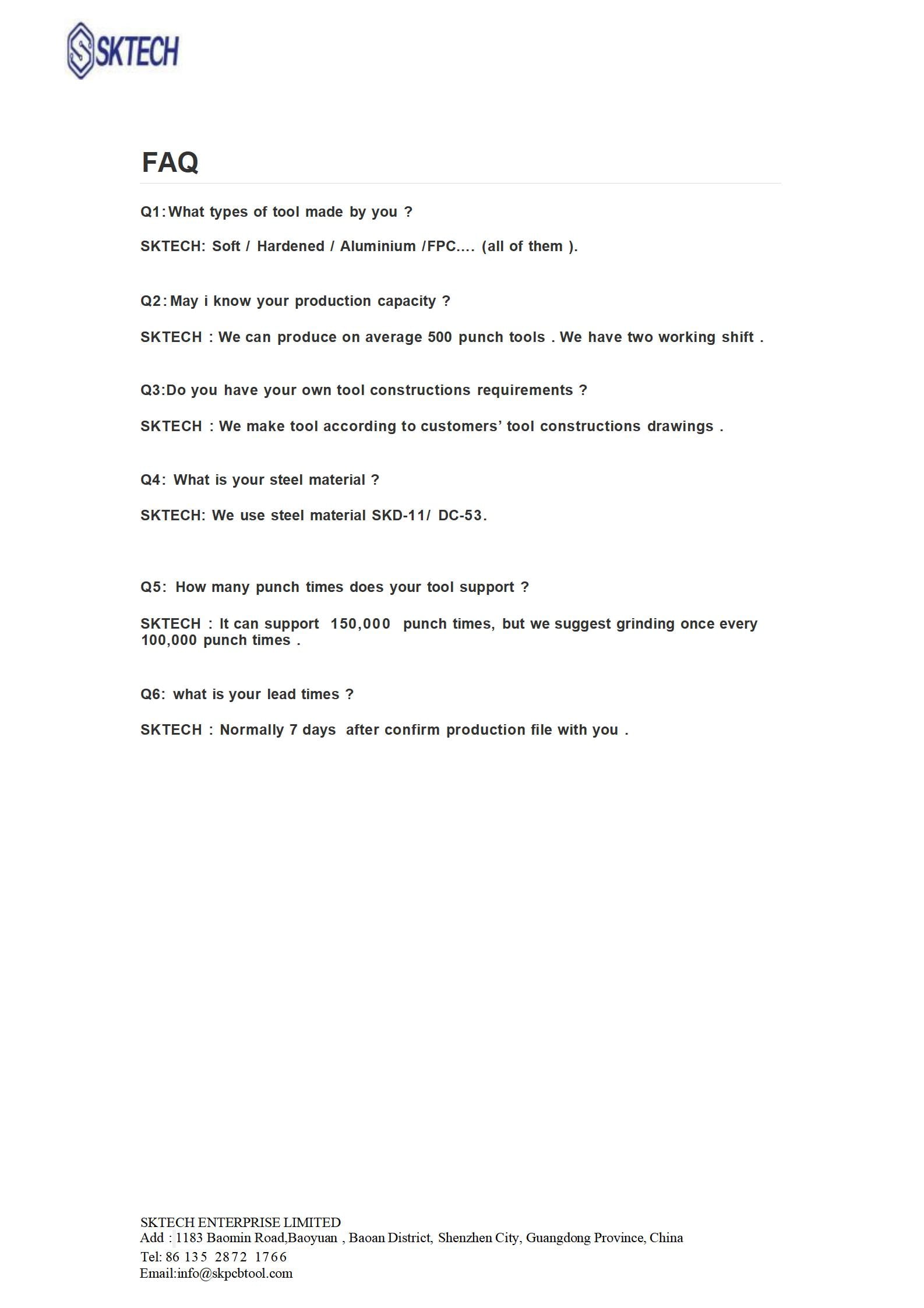

Frequently Asked Questions

Common inquiries about our PCB stamping dies and manufacturing capabilities.

What substrates can this stamping die process?
Our molds are engineered to precisely punch various materials including FR1, FR2, CEM1, CEM2, and Aluminum substrates. We customize the die structure and material hardness based on the specific substrate you use to ensure burr-free edges and extended tool life.
Do you provide custom mold designs based on our drawings?
Yes, we offer comprehensive OEM/ODM services. You can provide your PCB CAD drawings or physical samples, and our engineering team will design the stamping die tailored to your factory's specific punching equipment parameters.
What is the expected lead time for a custom mold?
Standard lead time is typically 10-15 days from drawing approval to physical mold completion. This includes design, machining, assembly, and initial trial punching to verify dimensional accuracy.
How do you handle shipping to international markets like India?
We have extensive experience exporting to the Indian market and globally. Molds are securely packed in export-grade wooden crates with anti-rust treatment. We work with reliable freight forwarders for sea or air freight to ensure safe and timely delivery.

Ready to Optimize Your Production?

Get a customized mold solution for your PCB manufacturing line. Contact us for wholesale pricing, technical consultation, or to submit your drawings for quotation.

Call Us

+86 13528721766

Location

Bao'an, Shenzhen, China

Accepted formats: PDF, DWG, DXF, STEP, JPG, PNG.
